1mm sheet metal bending machine 30 tons plate bending machine

1mm Sheet Metal Bending Machine 30 Ton Plate Bending MachineThe EasyBend B Series NC Press Brake are optimal for the forming of parts with a low operation cost.EasyBend B Series NC Press Brakes have Torsion bar synchronous NC two axis control capability just like our larger Press Brakes.Standard EquipmentGermany ELGO P40 NC cont

Featured Products

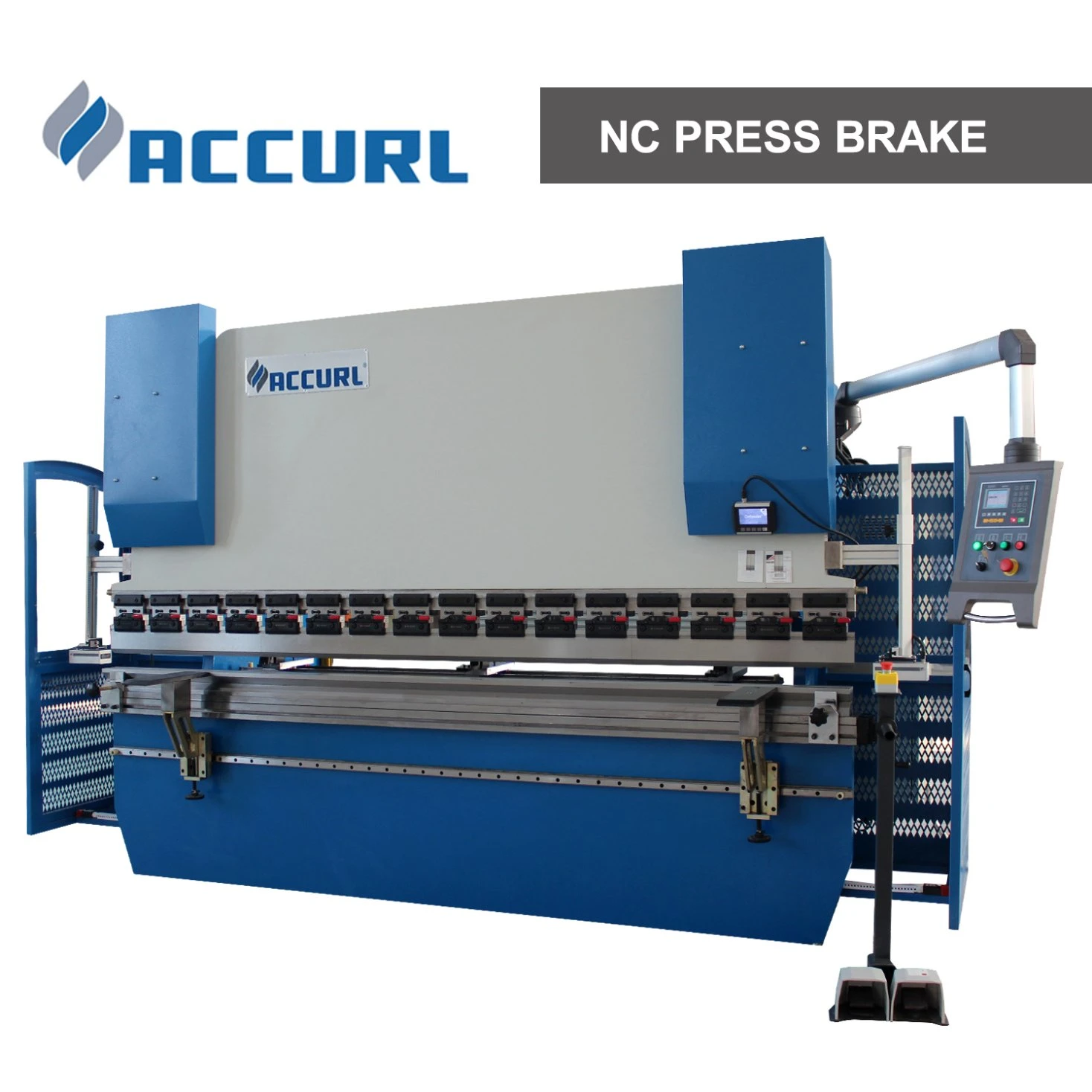

1mm Sheet Metal Bending Machine 30 Ton Plate Bending Machine

The EasyBend B Series NC Press Brake are optimal for the forming of parts with a low operation cost.EasyBend B Series NC Press Brakes have Torsion bar synchronous NC two axis control capability just like our larger Press Brakes.

1mm Sheet Metal Bending Machine 30 Ton Plate Bending Machine

Standard Equipment
Germany ELGO P40 NC control System
Plate Support Arms
Germany Bosch-Rexroth Hydraulic
Germany EMB Tubing connector
Germany Siemens Main Motor
Telemecanique/Schneider Electrics
Hydraulic&Electrical overload protection
Top and Bottom Tooling(86°,R0.6mm)
DELTA Inverter controlled back gauge
Powered Depth Y-axis & Back gauge X-axis
HIWIN Ball screws & Polished rod with 0.05mm accuracy

Optional Components
DELEM DA41s CNC System
Manual Crowing System
DSP Optical Safety Guard

1mm Sheet Metal Bending Machine 30 Ton Plate Bending Machine

Safety Equipment(CE&NR12)
Safety Standards(2006/42/EC)
  1.EN12622:2009+A1:2013
  2.ENISO12100:2010
  3.EN60204-1:2006+AI:2009
Front finger Protection(Safety light curtain)
South Korea Kacon Foot Switch(Level 4 of safety) Back metal safe fence with CE standards
Safety relay with Monitor the pedal switch & safety protection
