75mm steel rolling shutter slat forming machine

 Shutter Door  Roll Forming Machine Roofing Sheet Tile Roll Forming Machine is one of most popular metal building material making machines,it can produce many kinds of trapezoidal tile/panels,like Ag panel or PBR/R panel,which can be widely used in many scenes,like school,gym, warehouse,etc.1. Component line1

Featured Products

 Shutter Door  Roll Forming Machine

 Roofing Sheet Tile Roll Forming Machine is one of most popular metal building material making machines,it can produce many kinds of trapezoidal tile/panels,like Ag panel or PBR/R panel,which can be widely used in many scenes,like school,gym, warehouse,etc.

1. Component line1000 Roof Panel Cold Roll Forming Machine

No.NameUnitQty
1Man-made uncoilerset1
2Main machine for roll formingset1
3Control systemset1
4Hydraulic systemset1
5mold pressing machine  set1
6Bladeset1
Receiving tableset1

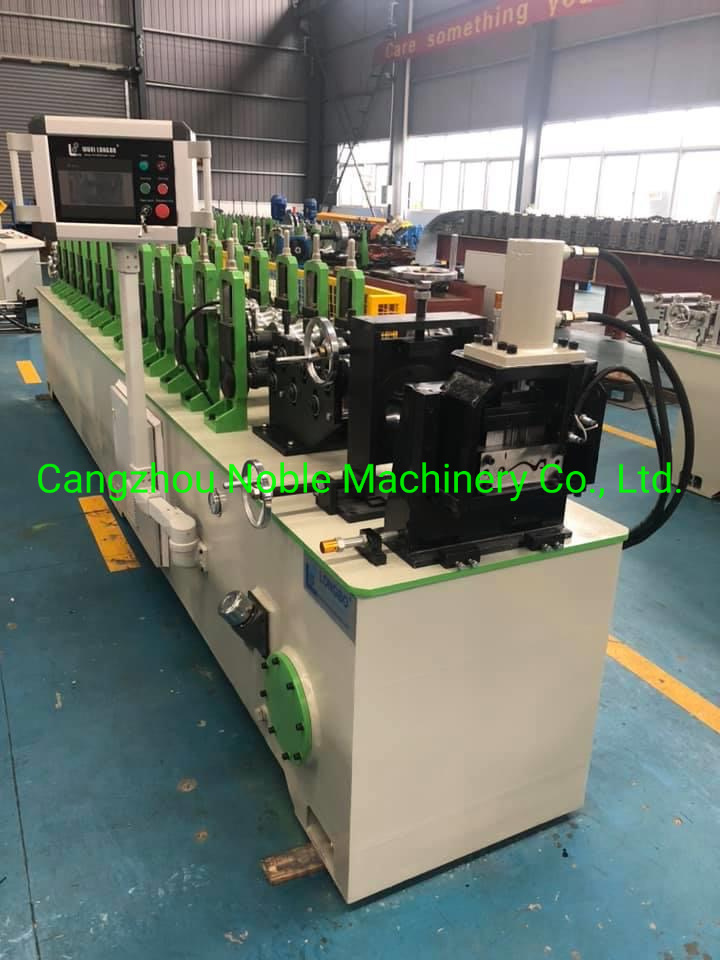

75mm Model Steel Roll Shutter Slats Roll Forming Machine
75mm Model Steel Roll Shutter Slats Roll Forming Machine


Product parameter

Series
DetailsParameter
ProducTRaw materialPPGI /PPGL
Material thickness0.25-0.8mm
Product cutting lengthAdjustable
Coil ID508 mm
Coil width1250 mm
Coil weight5T
DecoilerWork typehand type
StructureSteel channel for basic frame
Loading capacity5 Tons
Coil inner diameter550-610 mm(adjustable)
Max coil width121 mm
Roll
forming
machine
Feeding devicePlatform, the width is adjustable
Roller stations16 stages
The distance between 2 stages is 443mm
Roller shaftShaft material: 45# steel
Shaft diameter: φ70 mm
RollerRoller material: 45# steel
Roller spacerAnti rusty treatment
Work speed25m/min
Main structureMiddle plate weld with structure
Motor power5.5KW ,SHANGHAI LICHAO BRAND
Transmission1.0INCH CHAINS
Machine basic frame400# H steel welded with diagonal bracing inside
Bearing Chinese famous brand: Harbin
PLC
control
system
Frequency brandDelta (original)
PLC brand PLCDelta (original)
Screen typeTouch screen also have button
Screen languageEnglish / Chinese/Arabic
Low voltage apparatusTAIWAN DELTA
EncoderOmron
FunctionCutting to length, quantity and work speed control.
Hydraulic
system
Work typeHydraulic cutting
Driving type By pillar type cylinder
Hydraulic motor power4.0KW
Cutter material Cr12
Cutting length tolerance±1-3mm
Product
collect
table
Length3m
Width1.3m
StructureShaped steel welded
Machine weightAround 4Tons
Detailed photo
75mm Model Steel Roll Shutter Slats Roll Forming Machine
Decoiler ( Selectable configuration ):
Optional configuration ): Hydraulic decoiler;


Loading Lecel: 5tons(common), 8tons, 10tons, 15tons or as requirement;
Loading Width: Max. 1250mm or 1450mm (common);
Loading Inner Diameter: φ450-550mm;
Loading Outer Diameter: Max. φ1500mm



Forming station :
With feeding material guide, body frame made from H450 type steel by welding
Side wall thickness: Q235 t30mm ;
Tie rod:ф22 Galvanized
Rollers manufactured from Gcr15/Cr12 steel,CNC lathes,Heat Treatment,hard Chrome Coated
with thickness 0.04mm,surface with mirror treatment
The warranty for the rollers is 2 years
Shafts Diameter=ф90 mm,precision machined
Gear/Sprocket driving,about 21-step to form(19-step to form and 3 step for final shaping).
Main Motor=18.5KW , Frequency speed control
Speed redcucer motor:K series;
Size changing motor:6pcs, Automatically controlled by PLC Programing.
Sliding block:150*150mm;
All the screw bolts with grade 8.8
Real forming speed 20m/min (depending on the number of punching holes)With squareness roller setup
75mm Model Steel Roll Shutter Slats Roll Forming Machine
75mm Model Steel Roll Shutter Slats Roll Forming Machine

Post Hydraulic Cutting Device Post to cut, stop to cutting,Three pieces type of cutting blade design, no blanking
Hydraulic motor:5.5 KW ;
Cutting tool material: Cr12MoV
The cutting power is provided by the main engine hydraulic station



PLC Controller & Hydraulic System
75mm Model Steel Roll Shutter Slats Roll Forming Machine
75mm Model Steel Roll Shutter Slats Roll Forming Machine


Collect Product Table

1.   Automatic Stacker (optional configuration)--Length: According to customized;
2.   Manual Simple collecting product table (standard configuration)--Length: 3m(common) or as customized.

Product feature
1 More efficient and accurate execution of production orders;
2. High equipment reliability;
3. Little waste of materials and energy;
4. High productivity;
5. High quality materials, get a longer service life;
6. All parts of the machine are processed with precision, and the surface of the roll is chromeplated to ensure that customers can get qualified products at the same time, it can avoid the scratch of the color steel surface paint, and increase the service life of the roll;
7. Customized coil processing solutions to solve all aspects of technical problems.
1 More efficient and accurate execution of production orders;
2. High equipment reliability;
3. Little waste of materials and energy;
4. High productivity;
5. High quality materials, get a longer service life;
6. All parts of the machine are processed with precision, and the surface of the roll is chromeplated to ensure that customers can get qualified products at the same time, it can avoid the scratch of the color steel surface paint, and increase the service life of the roll;
7. Customized coil processing solutions to solve all aspects of technical
75mm Model Steel Roll Shutter Slats Roll Forming Machine
75mm Model Steel Roll Shutter Slats Roll Forming Machine


Why Choose this machine?
1. Lifetime seivices
2. Introduced Mitsubishi PLC with touch screen to machine controll system.
3. One worker operation (minimum)
4. Lifetime>10years: roller cover with 0.05mm chrome
72mm diameter solid steel shaft
Cutting blade with heat treatment.
5. Cr12 mould steel cutter with quenched treatment.
6. Product cut-to-length.
8.Technician overseas installing and training available
After Sales Service

1. Engineer will give free training lessons to labors in buyer's factory.
2. The Buyer need buy the round-trip air ticket for Engineer if visa application is approved. The buyer is also responsible to bear expenses generated, e.g. visa formalities, meals, accommodation and allowance of USD100 per day for engineer.
3. During this guarantee period, we will provide spare parts without any charge in case of quality discrepancy caused by us. If the malfunctions are caused by incorrect operations, we will provide the buyer spare parts at cost price.
4. We will charge the buyer cost price of spare parts beyond one year and provide long-term technical guide

Packaging & Shipping

75mm Model Steel Roll Shutter Slats Roll Forming Machine

Company Profile



75mm Model Steel Roll Shutter Slats Roll Forming Machine
Cangzhou Noble as a professional manufacturer of ROLL FORMING MACHINE, we use AUTO CAD design software. With more than 16 years of experience and strict quality control, our products meet international standard. We are the leading manufacturer of ROLL FORMING MACHINE in CHINA.
Our company Sell machinery from 2011 years, manufacture all kind of machinery: Roof Tile machinery, wall panel machinery, roofing corrugated sheet machinery, floor deck machine, C&Z Purline machine, highway guardrail machine, EPS/Rock wool Sandwich panel line, Container board machine, Roll shutter door machine, Down spout machine and Steel bar straightening machine, PPGI/GI/GL Coils, Prefabricated container house Etc. All our clients are satisfied with the workmanship and performance of our machines because our company is accompanied with sound infrastructure and qualified team, Our company prime mission is to provide superior quality industrial machines that are efficient, highly productive and durable.
All our efforts are resulted in to the growth at par excellence and also company started getting recognized as an organization compassionately devoted to the policy of "Quality" with "VALUE FOR MONEY".



Exhibition & Client Visit

75mm Model Steel Roll Shutter Slats Roll Forming Machine

FAQ

.How to play order :

Inquiry---confirm the profile drawings and price---confirm the PI---arrange the deposit ---we start producing

What can we do if the machine broken?

The machine will be tested before shipment with coil, ensure everything is ready 2.We will prepare some spare parts along with the machine, ensure our customer can solve the issue in a shortest time.Both the sale person and technician can give you the service overseas and make training for the workers,the sale person can make translation, so that the installation and training will be more clear and easily.

Guarantee

Lifetime maintenance guarantee.We offer 2 years guarantee

*After-sales

 To give you the best after-sales service, the first give you video call with professional technicians , the second we send technicians to your country to repair the machine,
The buyer shall bear all expenses, including visa, round-trip airfare and suitable accommodation, and pay the salary of usd 100 / day.
